Yamaha Outboards 150HP V MAX SHO | VF150XB

Yamaha VF150XB 150 HP Four-Stroke Outboard: V MAX SHO Performance with Extra Reach

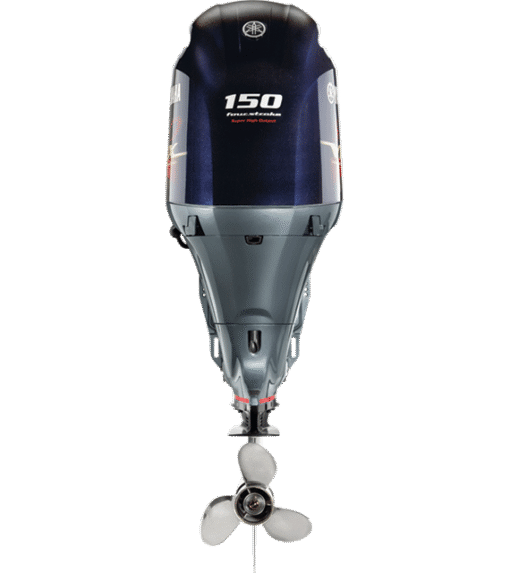

The Yamaha Outboards 150HP V MAX SHO | VF150XB

Are you seeking an outboard that delivers exhilarating performance, outstanding fuel efficiency, and Yamaha’s legendary reliability? Perhaps your priority is rapid acceleration and a strong top end, essential for competitive fishing or thrilling recreational boating. Specifically, do you require a 150 horsepower engine with an extra-long 25-inch shaft to accommodate higher transoms or ensure proper propeller depth in varied conditions?

The Yamaha VF150XB 150 HP Four-Stroke Outboard Motor is precisely engineered to meet these high-performance demands.

Indeed, the VF150XB is a proud member of the V MAX SHO family. It embodies Yamaha’s commitment to delivering a powerful yet compact and lightweight outboard. Furthermore, this model features standard (right-hand, clockwise) propeller rotation, making it ideal for single-engine applications where aggressive hole shot and top speed are paramount.

Moreover, it comes with an extra-long 25-inch shaft. This ensures optimal propeller depth for various hull types, especially those with higher transoms found on performance boats. It includes a smooth electric start system, providing effortless and dependable ignition. In addition, it boasts Power Trim & Tilt with an integrated tilt limiter, allowing for quick adjustments to optimize performance and navigate varying water depths with added protection.

Beyond this, the VF150XB is configured for remote mechanical control. This provides precise command from the helm while maintaining a straightforward rigging setup. Crucially, it integrates advanced Electronic Fuel Injection (EFI) and Variable Camshaft Timing (VCT) for optimal combustion efficiency. It also includes Variable Trolling RPM Control (VTS) for anglers. Ultimately, the VF150XB delivers a powerful, responsive, and exceptionally fast performance, making it a premier choice for boaters demanding a competitive edge.

---

Deciphering the VF150XB Model Code

The “VF150XB” designation provides crucial information about this Yamaha outboard.

The “V” for V MAX SHO Series

First, the “V” uniquely identifies this as a V MAX SHO (Super High Output) series engine. This designation signifies that the engine is tuned for maximum acceleration, top-end speed, and an overall sporty performance characteristic. It’s built for demanding applications where quick response is critical.

The “F” for Four-Stroke Engine

Next, the “F” indicates a Four-Stroke engine. This means the engine operates on a cleaner, more fuel-efficient four-stroke cycle, contrasting with two-stroke engines.

The “150” for Horsepower

Then, the “150” simply denotes the 150 horsepower rating at the prop shaft.

The “X” for Extra-Long Shaft

Furthermore, the “X” signifies an Extra-Long Shaft (25 inches, or approximately 643 mm). This shaft length is crucial for boats with higher transoms. It ensures the propeller is adequately submerged for optimal thrust and performance, particularly in choppy conditions or when running at high speeds.

The “B” for Mechanical Remote Control (and often specific generation)

Finally, the “B” in VF150XB typically indicates its generation and often signifies that the engine is configured for Remote Mechanical Control. Unlike the “C” series F models that feature integrated hydraulic steering, V MAX SHO models often prioritize a lighter, more compact design for speed-oriented hulls.

Therefore, the VF150XB is a standard (right-hand) rotation, four-stroke, 150 horsepower V MAX SHO outboard with a 25-inch extra-long shaft. It is designed for remote mechanical controls.

---

Why the Yamaha VF150XB Excels: Key Advantages

The Yamaha VF150XB stands out for boaters. It prioritizes aggressive performance, fuel efficiency, and cutting-edge features in a relatively lightweight package, making it perfect for specific high-performance applications.

Optimized for Performance: V MAX SHO Design

Primarily, the VF150XB is part of the V MAX SHO series, which means it’s inherently tuned for performance. Consequently, it delivers exceptional hole shot and rapid acceleration, allowing boats to get on plane quickly. This is crucial for competitive fishing or simply enjoying a spirited ride.

Powerful 2.8L DOHC Engine with VCT

At its core, the VF150XB is powered by a robust 2.8-liter (2785cc) in-line four-cylinder, 16-valve, DOHC (Double Overhead Camshaft) four-stroke engine. This larger displacement compared to the standard F150 enhances torque. Moreover, it incorporates Variable Camshaft Timing (VCT) technology. Thus, VCT continuously adjusts the intake camshaft timing. This optimizes valve overlap and duration for increased power and throttle response across the entire RPM range, especially in the low and mid-range.

Electronic Fuel Injection (EFI) for Precision

A core feature is its Multi-Point Electronic Fuel Injection (EFI) system. This precise system, controlled by an Engine Control Module (ECM), accurately meters fuel. Consequently, you get dependable “first-time, every-time” starts, both hot and cold. Furthermore, it ensures superior fuel efficiency, smoother acceleration, and excellent throttle response across the entire RPM range.

Effortless Electric Start and Power Trim & Tilt

The electric start system offers unmatched convenience. Simply turn a key, and the engine comes to life. This eliminates manual pull-starting. Additionally, the Power Trim & Tilt system allows for instant, push-button adjustments of the engine angle. This helps optimize performance, trim the boat for different conditions, and navigate varying water depths.

High-Output Alternator

Significantly, the VF150XB features a powerful 50-amp alternator output (12V). This provides ample power for all your onboard electronics, from fishfinders to livewells. Moreover, it reliably charges your battery. Even at low RPMs, the alternator produces strong, stable output, ensuring consistent power for demanding electronics.

Lightweight and Compact Design

Despite its power, the V MAX SHO series prioritizes a compact and lightweight design. This contributes to better overall boat performance, less stern squat, and potentially higher top speeds. Also, being a four-stroke, there’s no need for an external oil tank, freeing up valuable storage space on your boat.

Legendary Yamaha Durability

Like all Yamaha outboards, the VF150XB is built for durability. It features robust materials and superior corrosion protection. This includes Yamaha’s proprietary YDC-30 aluminum alloy. It also has a 5-stage Phaze Five™ anti-corrosive paint system, multiple sacrificial anodes, and high-quality stainless steel components. All these elements ensure longevity in harsh marine environments. Moreover, a freshwater flushing system allows for easy rinsing, further extending engine life.

Variable Trolling RPM Control (VTS®)

The VF150XB also offers Variable Trolling RPM Control (VTS®). This feature lets you precisely adjust trolling speeds in 50-RPM increments (from 550 to 1000 RPM). This is done via an optional Digital Network Tachometer or a remote VTS switch. This is invaluable for anglers who need to fine-tune lure presentation.

---

Core Features of Your Yamaha VF150XB 150 HP Four-Stroke Outboard

Here’s a concise breakdown of the key features that define the Yamaha VF150XB:

Engine & Performance

• 150 Horsepower (Prop Shaft): High-performance power for demanding applications.
• 2.8L Four-Cylinder DOHC Engine: Larger displacement for enhanced torque.
• Variable Camshaft Timing (VCT): Boosts low- and mid-range acceleration.
• Electronic Fuel Injection (EFI): Reliable starts, fuel efficiency, and responsive power.
• Variable Trolling RPM Control (VTS®): Precision trolling from 550-1000 RPM.
• Prime Start™ System: Guarantees instant cold starts.
• Offset Crankshaft: Reduces internal friction for enhanced efficiency.

Starting & Control

• Electric Start: Effortless engine ignition.
• Remote Mechanical Control: Precise helm control of throttle and shifting.
• Power Trim & Tilt: Easy adjustment for optimal boat performance.

Design & Charging

• V MAX SHO Series: Tuned for superior hole shot and top speed.
• Standard Rotation (Right-Hand): Ideal for single-engine applications.
• 25-inch (Extra-Long) Shaft: Suits boats with higher transoms or deep-V hulls.
• High-Output 50-Amp Alternator: Provides ample power for electronics and battery charging, even at idle.

Durability & Environment

• Legendary Yamaha Reliability: Built for long-term durability in marine environments.
• Advanced Corrosion Protection: Multi-layer paint, alloys, and anodes resist saltwater.
• CARB 3-Star Rating: Ensures ultra-low emissions.
• Compact, Lightweight Design: Enhances boat performance and efficiency.
• Freshwater Flushing System: Simplifies maintenance and prolongs engine life.

---

Ideal Applications for Your Yamaha VF150XB Outboard

The Yamaha VF150XB is a specialized high-performance outboard, perfect for specific types of boats where speed and acceleration are paramount.

Bass Boats

This outboard is a prime choice for bass boats. Its V MAX SHO tuning provides the explosive hole shot needed to get on plane quickly. Moreover, it offers excellent top-end speed for navigating large lakes and rivers efficiently.

Flats Boats and Skiffs

For flats boats and shallow-draft skiffs, the VF150XB delivers the swift response needed for rapid maneuvers in tight fishing spots. Additionally, its lightweight design is beneficial for these performance-oriented hulls.

High-Performance Bay Boats

Many high-performance bay boats benefit significantly from the VF150XB. It offers the power to tackle open water with confidence. Furthermore, it provides the speed desired by anglers who need to cover large distances quickly.

Multi-Species Fishing Boats

Anglers using multi-species boats on larger inland lakes or coastal waters will appreciate the VF150XB’s combination of power and efficiency for various fishing techniques.

---

Yamaha Outboards 150HP V MAX SHO | VF150XBUnwavering Commitment to Quality

Choosing a Yamaha VF150XB means more than just buying an outboard motor. You are investing in a meticulously engineered piece of marine equipment. It’s designed for impressive, high-performance power, robust construction, effortless electric start, and precise remote control. Furthermore, it offers long-term reliability and specialized performance for a thrilling boating experience.

Yamaha’s decades of innovation and craftsmanship are evident in every aspect of the VF150XB. This ranges from its powerful 2.8L DOHC engine with VCT to its outstanding fuel economy and renowned durability. Ultimately, the VF150XB embodies Yamaha’s promise. It delivers a superior boating experience. It ensures peace of mind and countless hours of high-performance enjoyment on the water.

---

Technical Specifications Yamaha Outboards 150HP V MAX SHO | VF150XB (Approximate – Always Verify with Official Yamaha Resources for the specific model year)

• Model Name: VF150XB
• Engine Type: 4-Stroke, DOHC, In-line 4-Cylinder, 16-Valve with Variable Camshaft Timing (VCT)
• Horsepower (Prop Shaft): 150 HP @ 5500 RPM
• Displacement: 2785 cc (2.8L / 170 ci)
• Bore x Stroke: 96.0 mm x 96.2 mm (3.78 x 3.79 in.)
• Full Throttle RPM Range: 5000 – 6000 RPM
• Fuel Induction System: Electronic Fuel Injection (EFI)
• Starting System: Electric with Prime Start™
• Ignition System: TCI Microcomputer
• Alternator Output: 50 Amps (12V) with Rectifier Regulator
• Lubrication System: Wet Sump (pressurized oil delivery system)
• Engine Oil Capacity: 4.5L (4.8 US qt) with filter, 4.3L (4.5 US qt) without filter
• Gear Ratio: 2.00:1 (28:14)
• Gear Shift: F-N-R (Forward, Neutral, Reverse)
• Shaft Length: 25 inches (Extra-Long Shaft) – approx. 643 mm (25.3 in) transom length
• Trim & Tilt System: Power Trim & Tilt
• Recommended Fuel: Midgrade Unleaded (Minimum Pump Octane 89)
• Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external, recommended)
• C.A.R.B. Rating: 3-Star (Ultra Low Emission)
• Exhaust: Through Propeller
• Weight (Dry): Approximately 223 kg (492 lbs)
• Steering: Remote Mechanical Control
• Propeller Rotation: Right-Hand (Standard Rotation)
• Standard Features: Electric Start, Power Trim & Tilt, EFI, VCT, Freshwater Flushing System, Variable Trolling RPM Control (VTS®) compatibility, Robust Corrosion Protection (YDC-30 alloy, 5-stage paint process, extra-large anodes), Offset Crankshaft, Watertight Cowling with Intake Air Drain System, Compatible with Yamaha Command Link® Digital Gauges (optional), NMEA2000 compatibility.
• Typical Color: V MAX SHO Black/Gray

---

Are you ready to equip your boat with a high-performance, efficient, and technologically advanced 150 HP outboard with an extra-long shaft, designed for thrilling acceleration and top speed? This model offers electric start, Power Trim & Tilt, and precise remote control. Invest in the Yamaha VF150XB 150 HP Four-Stroke Outboard Motor today. Experience unmatched hole shot and exhilarating performance. Enjoy the peace of mind that comes with Yamaha’s trusted quality. Ultimately, push the boundaries of your boating adventures.
